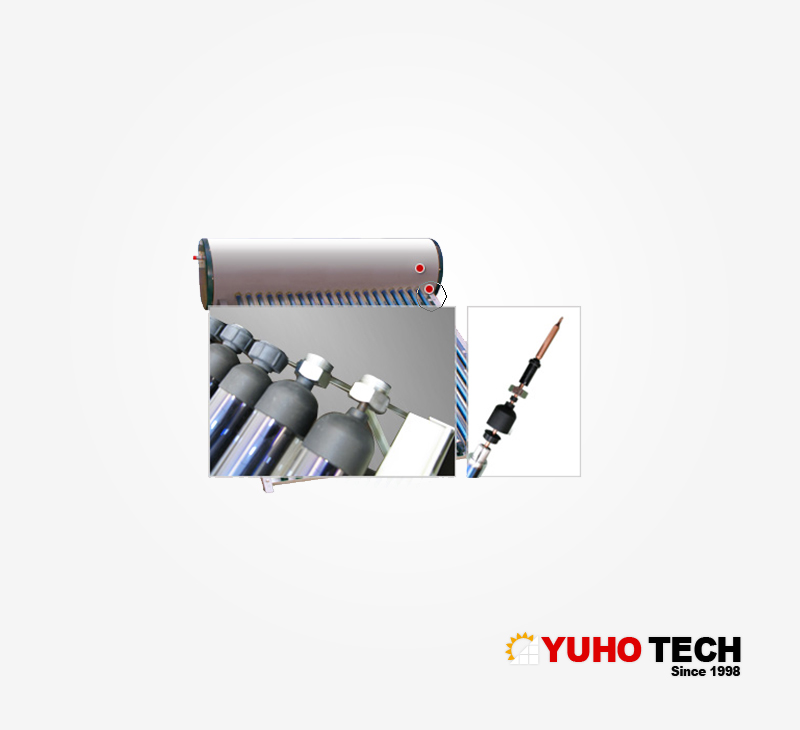

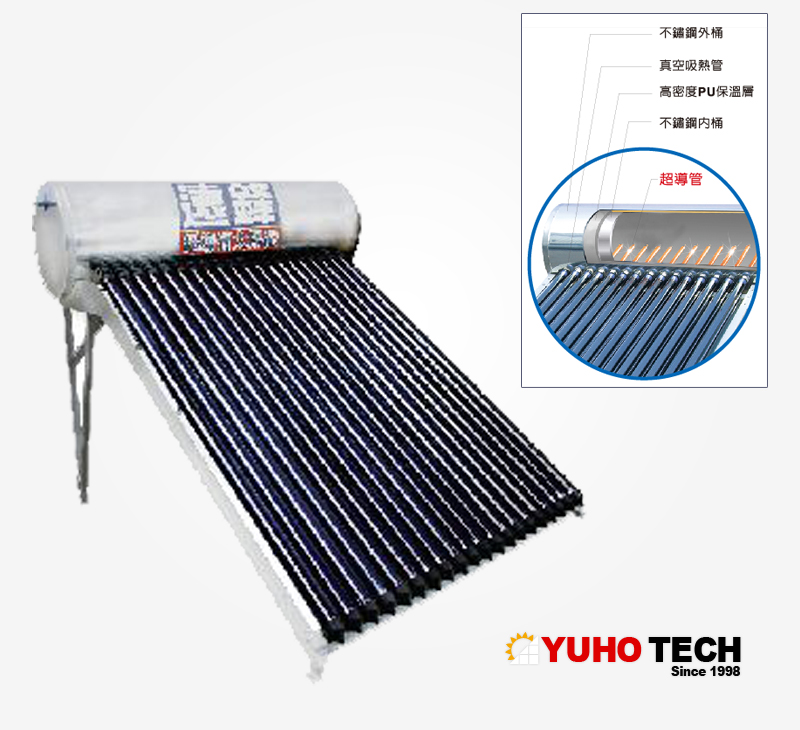

The solar water heating systems are a complete and most reliable solution offering energy saving. Unique combination of manufacturing technology, quality control and technical experience enable us to deliver best of class products for over 15 years. YUHO solar water heater can reduce energy consumption around 50%. YUHO solar water system products are widely used in domestic hot water, pool or combined with heat pump. Evacuated tube heat pipe can more easily attain the higher temperatures needed, they can collect and retain heat even when it is very cold outside. The YUHO heat pipe vacuum tube solar water heater uses evacuated tubes (glass-glass seal), copper headers, copper heat pipes, Stainless steel tank, High-density PU foam insulation, and galvanized-steel frame.
Model |
P58/20 |
P58/30 |
|
Heat pipe vacuum tube thermal collector |
Quantity (pcs) |
20 |
30 |
Diameter (mm) |
58 |
58 |
|
Length (mm) |
1700 |
1700 |
|
Storage tank |
Volume (Liter) |
200 |
300 |
Material |
SUS 304 |
||
Wall thickness (mm) |
1.2 |
||
Mounting frame |
Galvanized Steel |
||
Insulation material |
50mm High Density PU foam |
Model :
200 Liter tank with 20 heat pipe vacuum tubes
300 Liter tank with 30 heat pipe vacuum tubes
Features :
- High performance and reliability
- High selective 3 target coating absorbers vacuum tubes.
- Japanese Oxygen-Free copper to produce excellent transfer heat pipe.
- Can be combined with all heat sources.
-Rapid return on investment.
-Long service life, robust, temperature and weather resistant design.
